1393240-4 | Schrack
Relay, 1 Form C (NO/NC), 24 V (AC), 350 Ω, 16 A, 400 V (AC), monostable, 1393240-4
Unit Price (€ / pc.)
6.1285 € *
Available in 5 Days: 456 pcs. - if ordered today
Total Price:
6.13 € *
Price list
Quantity
Price per unit*
1 pcs.
6.1285 €
10 pcs.
5.7001 €
25 pcs.
5.3193 €
50 pcs.
4.8314 €
*incl. VAT plus shipping costs
Subject to prior sale

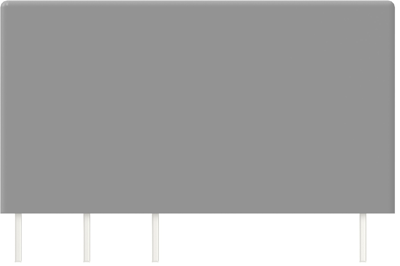

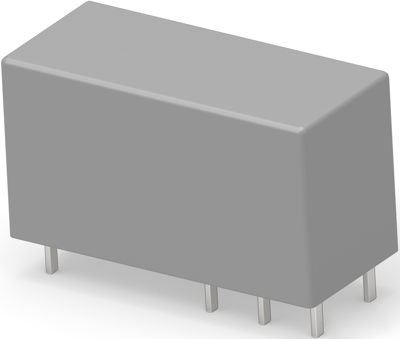

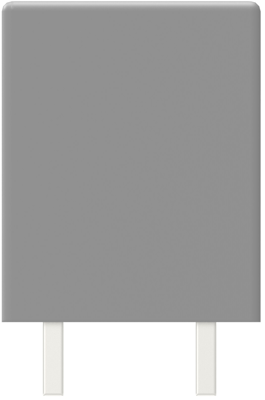

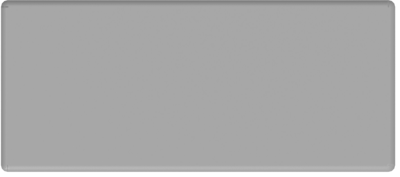

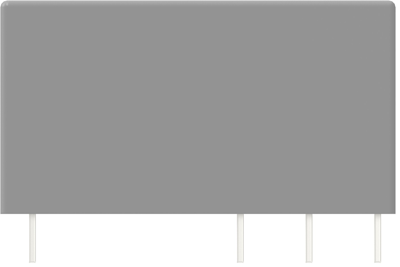

Power relay, 1393240-4, Schrack
Power relay, Standard, Monostable, AC, 0.76 VA Coil Power Rating AC, 350 Ω Coil Resistance, UL Coil Insulation Class F.
Features
- Reinforced insulation
Applications
- Boiler control
- Garage door control
- POS automation
- Interface modules
- Timers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil resistance | 350 Ω | |
| Contact type | 1 Form C (NO/NC) | |
| Connection | plug-in/PCB connection | |
| Coil voltage (AC) | 24 V | |
| switching current | 16 A | |
| Contact material | AgNi 90/10 | |
| Coil type | monostable | |
| Switching Voltage (AC) | 400 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | AT |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
