1393240-1 | Schrack
Relay, 1 Form C (NO/NC), 48 V (DC), 5520 Ω, 16 A, 400 V (AC), monostable, 1393240-1
Unit Price (€ / pc.)
5.5573 € *
Available in 5 Days: 221 pcs. - if ordered today
Total Price:
5.56 € *
Price list
Quantity
Price per unit*
1 pcs.
5.5573 €
10 pcs.
5.1646 €
25 pcs.
4.8195 €
50 pcs.
4.3792 €
*incl. VAT plus shipping costs
Subject to prior sale

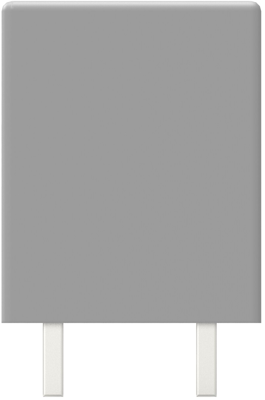

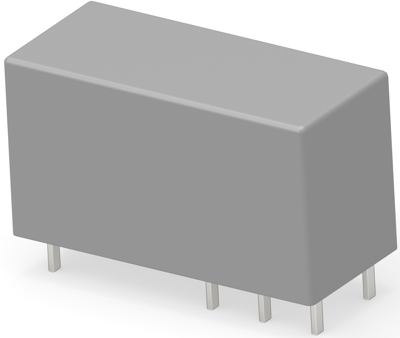

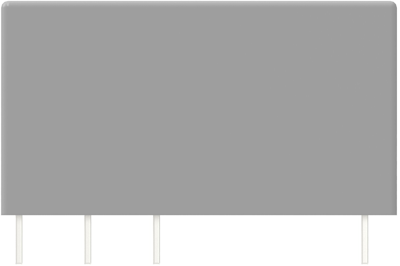

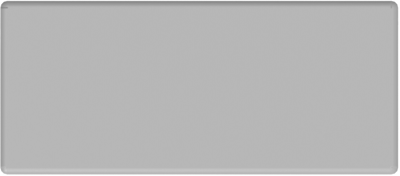

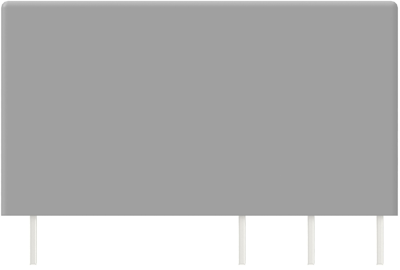

Power relay, 1393240-1, Schrack
Power relay, Standard, Monostable, DC, 417 mW Coil Power Rating DC, 5520 Ω Coil Resistance, UL Coil Insulation Class F.
Features
- Reinforced insulation
Applications
- Boiler control
- Garage door control
- POS automation
- Interface modules
- Timers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil voltage (DC) | 48 V | |
| switching current | 16 A | |
| Coil resistance | 5520 Ω | |
| Contact type | 1 Form C (NO/NC) | |
| Switching Voltage (AC) | 400 V | |
| Coil type | monostable | |
| Connection | plug-in/PCB connection | |
| Contact material | AgNi 90/10 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364110 |
| Country of origin | AT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
