1393230-9 | Schrack
Relay, 1 Form A (N/O), 12 V (DC), 270 Ω, 16 A, 440 V (AC), monostable, 1393230-9

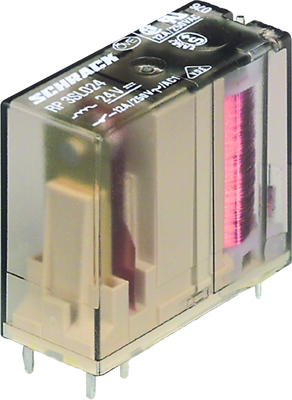

PCB load relay, type TE Connectivity/Schrack Special load RP3SL.
Withstands automatic soldering processes, monostable, for high inrush currents; Contact type: 1 x NO (single contact). Contact material: AgSnO2. Rated voltage: 250 VAC. Switching voltage: max. 400 VAC. Rated current: 16 A. Contact rating: max. 4000 VA. Peak inrush current: 120 A (20 ms). Dielectric strength coil/contact: 4000 VRMS. Coil power: 520 mW. On/off delay (typical): 8.0/2.0 ms. Bounce time (typical): 2.0 ms. Relay protection class: RT II. Degree of soiling: 3. Overvoltage category: III. Ambient temperatures: –40 to +70 °C. Certifications: VDE, UL, CSA.
Technical attributes (type, rated coil voltage, coil resistance (at 12 VDC ±10 %, at 24 VDC ±15 %)): 0-1393230-9, 12 VDC, 270 ohm
| Filter | Property | Value |
|---|---|---|
| Contact type | 1 Form A (N/O) | |
| Coil resistance | 270 Ω | |
| Switching Voltage (AC) | 440 V | |
| switching current | 16 A | |
| Coil type | monostable | |
| Connection | PCB connection | |
| Contact material | AgSnO2 | |
| Coil voltage (DC) | 12 V |
| Property | Value |
|---|---|
| Original Packaging | Bar with 20 pieces |
| Country of origin | IN |
| Customs tariff number | 85364900 |
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Diphenyl(2,4,6-trimethylbenzoyl)phosphine oxide |
| RoHS conform | Yes |
