1393154-8 | Schrack
Relay, 3 Form C (NO/NC), 115 V (AC), 4845 Ω, 10 A, 400 V (AC), monostable, 1393154-8
Unit Price (€ / pc.)
11.5549 € *
Available in 5 Days: 205 pcs. - if ordered today

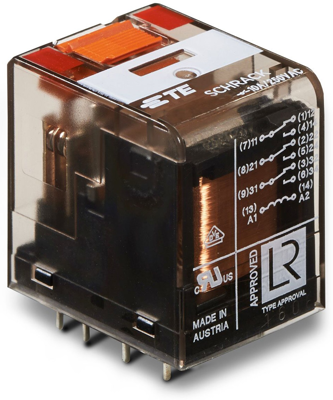

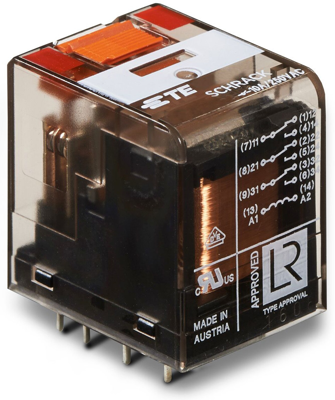

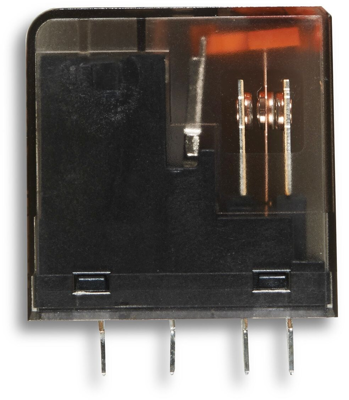

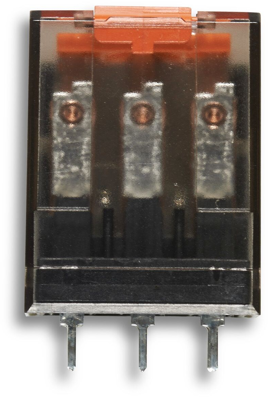

Miniature relay, 1393154-8, Schrack
Power relay, Industrial panel plug-In, Monostable, AC, 1 VA/.86 VA Coil Power Rating AC, 4845 Ω Coil Resistance.
Features
- Mechanical indicator
- PCB terminals
- White marking tabs
Applications
- Universal use in control and automation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil voltage (AC) | 115 V | |
| Contact type | 3 Form C (NO/NC) | |
| Coil type | monostable | |
| Connection | PCB pin | |
| Contact material | AgNi 90/10 | |
| Coil resistance | 4845 Ω | |
| switching current | 10 A | |
| Switching Voltage (AC) | 400 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364110 |
| Country of origin | AT |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
