1-1415899-7 | Schrack
Relay, 1 Form A (N/O), 24 V (DC), 1.44 kΩ, 16 A, 400 V (AC), monostable, 1-1415899-7
Unit Price (€ / pc.)
2.2729 € *
Standard delivery time from the manufacturer is: 17 Weeks
Total Price:
2.27 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2729 €
10 pcs.
2.0706 €
50 pcs.
1.8683 €
100 pcs.
1.6779 €
*incl. VAT plus shipping costs
Subject to prior sale

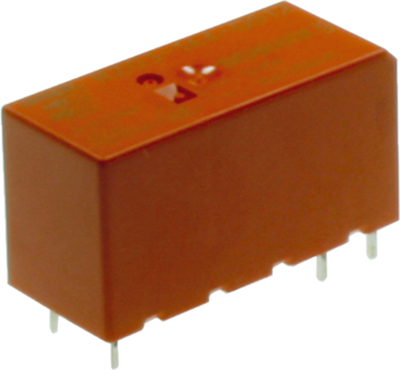

Power relay, type TE Connectivity/Schrack RZ.
To IEC 60335-1; Rated voltage: 250 VAC. Rated current: 16 A. Breaking capacity: max. 4000 VA. Dielectric strength coil/contact: 5000 VRMS. Ambient temperatures: –40 to +85 °C. Contact material: AgNi 90/10. Certifications: VDE, cULus.
With 1 x NO contact.
Technical attributes (type, rated coil voltage, coil resistance (±10 %), rated coil power): 1-1415899-7, 24 VDC, 1440 ohm, 400 mW
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact material | AgNi 90/10 | |
| Connection | PCB connection | |
| Contact type | 1 Form A (N/O) | |
| Switching Voltage (AC) | 400 V | |
| Coil voltage (DC) | 24 V | |
| Coil type | monostable | |
| switching current | 16 A | |
| Coil resistance | 1.44 kΩ |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Bar with 20 pieces |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
