1-1415899-3 | Schrack
Relay, 1 Form A (N/O), 5 V (DC), 60 Ω, 16 A, 400 V (AC), monostable, 1-1415899-3
Unit Price (€ / pc.)
1.9278 € *
Available in 5 Days: 7,957 pcs. - if ordered today
Total Price:
1.93 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9278 €
10 pcs.
1.7850 €
25 pcs.
1.6660 €
50 pcs.
1.5113 €
*incl. VAT plus shipping costs
Subject to prior sale

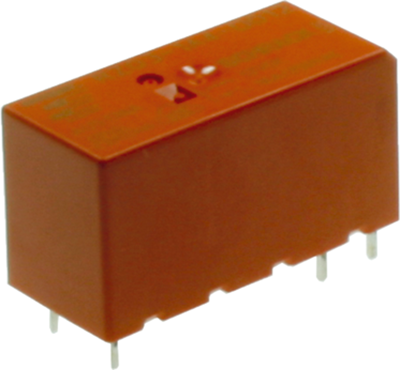

Power relay, type TE Connectivity/Schrack RZ.
To IEC 60335-1; Rated voltage: 250 VAC. Rated current: 16 A. Breaking capacity: max. 4000 VA. Dielectric strength coil/contact: 5000 VRMS. Ambient temperatures: –40 to +85 °C. Contact material: AgNi 90/10. Certifications: VDE, cULus.
With 1 x NO contact.
Technical attributes (type, rated coil voltage, coil resistance (±10 %), rated coil power): 1-1415899-3, 5.0 VDC, 60 ohm, 420 mW
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil resistance | 60 Ω | |
| Contact material | AgNi 90/10 | |
| Coil voltage (DC) | 5 V | |
| Connection | PCB connection | |
| switching current | 16 A | |
| Contact type | 1 Form A (N/O) | |
| Switching Voltage (AC) | 400 V | |
| Coil type | monostable |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Bar with 20 pieces |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
