1-1393845-4 | Schrack
Relay, 2 Form C (NO/NC), 24 V (DC), 1100 Ω, 8 A, 400 V (AC), monostable, 1-1393845-4
Order No.: 71P0437
MPN:
1-1393845-4
Unit Price (€ / pc.)
29.0122 € *
Available in 5 Days: 1,047 pcs. - if ordered today
Total Price:
29.01 € *
Price list
Quantity
Price per unit*
1 pcs.
29.0122 €
2 pcs.
27.1439 €
5 pcs.
25.4898 €
10 pcs.
23.7048 €
*incl. VAT plus shipping costs
Subject to prior sale

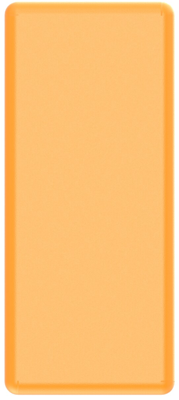

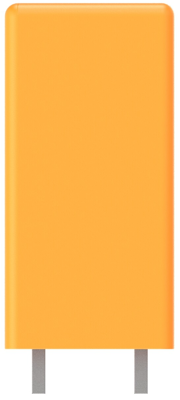

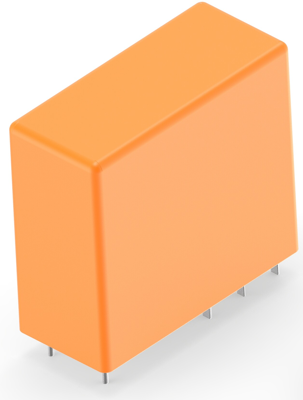

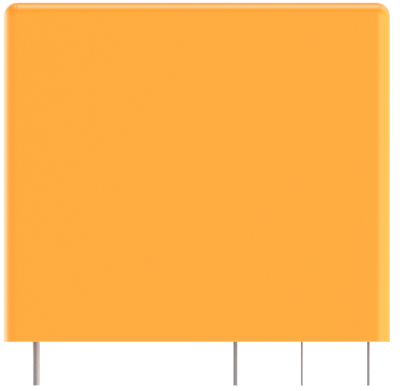

Power relay, 1-1393845-4, Schrack
Power relay, Standard, Monostable, DC, 500 mW Coil power rating DC, 1100 Ω Coil resistance, 24 VDC Coil voltage, 2 Form C (CO).
Applications
- Domestic appliances
- UPS
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil resistance | 1100 Ω | |
| Contact type | 2 Form C (NO/NC) | |
| Connection | PCB pin | |
| switching current | 8 A | |
| Contact material | AgNi + Au | |
| Coil type | monostable | |
| Switching Voltage (AC) | 400 V | |
| Coil voltage (DC) | 24 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | diphenyl(2,4,6-trimethylbenzoyl)phosphine oxide |
| RoHS conform | Yes |
| SVHC free | No |
