1-1393224-4 | Schrack

Name: Relay, 1 Form A (N/O), 5 V (DC), 112 Ω, 8 A, 400 V (AC), monostable, 1-1393224-4
Brand: Schrack
SKU: 71P0403
Availability: InStock

Relay, 1 Form A (N/O), 5 V (DC), 112 Ω, 8 A, 400 V (AC), monostable, 1-1393224-4

Order No.: 71P0403

MPN:

1-1393224-4

Series: RYII

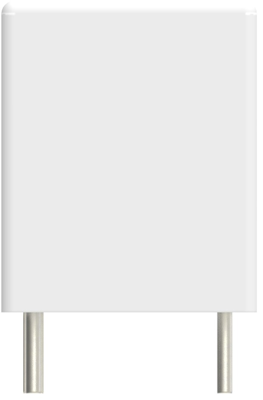

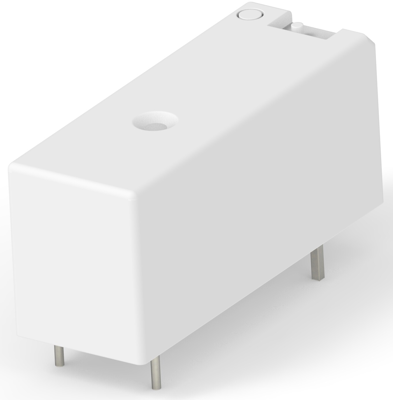

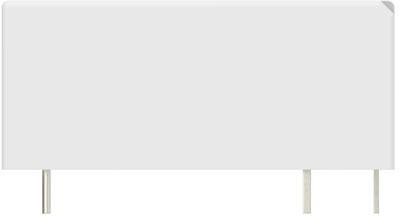

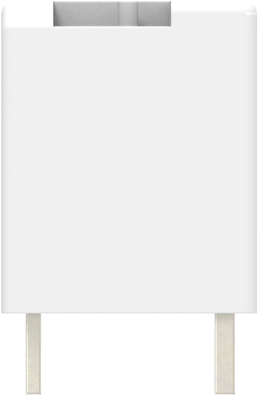

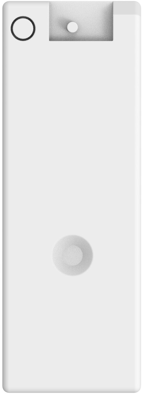

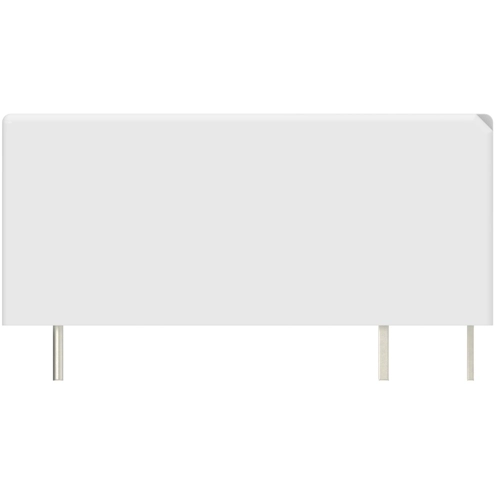

1-1393224-4 Schrack Industrial Relays Image 2

1-1393224-4 Schrack Industrial Relays Image 3

1-1393224-4 Schrack Industrial Relays Image 4

1-1393224-4 Schrack Industrial Relays Image 5

Image may differ

Key Specification:

Contact type 1 Form A (N/O)

switching current 8 A

Coil voltage (DC) 5 V

Coil resistance 112 Ω

Ordering Information:

not to be sold to private customers

Download Datasheet Technical specifications

Unit Price (€ / pc.)

8.8298 € *

Available in 5 Days: 864 pcs. - if ordered today

Total Price:

8.83 € *

Price list

Quantity

Price per unit*

1 pcs.

8.8298 €

5 pcs.

8.3657 €

10 pcs.

7.8302 €

25 pcs.

7.1400 €

*incl. VAT plus shipping costs

Subject to prior sale

Description

Miniature power connector, 1-1393224-4, Schrack

Power relay, Standard, Monostable, DC, 223 mW Coil Power Rating DC, 112 Ω Coil Resistance.

Features

Reinforced insulation
Wash tight

Applications

Heating control
Interface technology
Domestic appliances
Temperature control

Technical specifications

Filter	Property	Value
	switching current	8 A
	Coil resistance	112 Ω
	Coil voltage (DC)	5 V
	Switching Voltage (AC)	400 V
	Connection	PCB pin
	Contact type	1 Form A (N/O)
	Contact material	AgNi 0.15
	Coil type	monostable
