3-1416100-1 | Schrack
Coupling relay 1 Form C (NO/NC), 12 V (DC), 848 Ω, 6 A, 400 V (AC), 3-1416100-1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
21.2296 € *
Available in 5 Days: 183 pcs. - if ordered today
Total Price:
21.23 € *
Price list
Quantity
Price per unit*
1 pcs.
21.2296 €
5 pcs.
20.1229 €
10 pcs.
18.8258 €
25 pcs.
17.1717 €
*incl. VAT plus shipping costs
Subject to prior sale

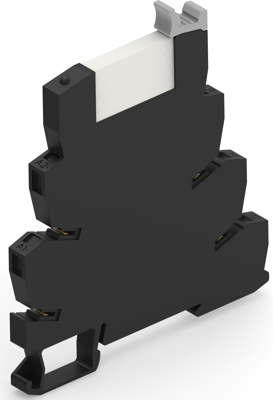

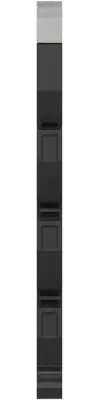

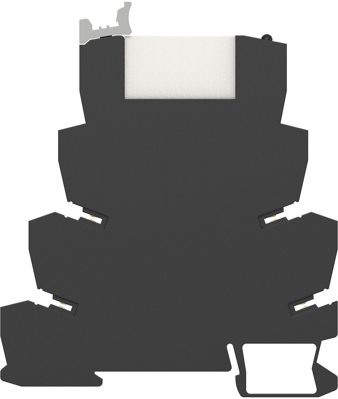

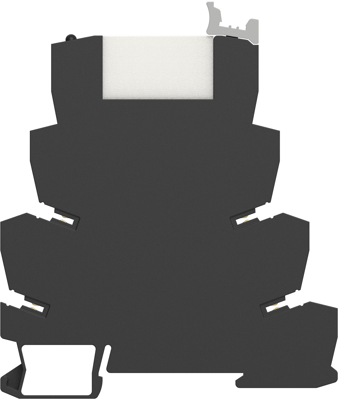

Panel plug-in relay, 3-1416100-1, Schrack
Power relay, Industrial panel plug-In, Monostable, DC, 184 mW Coil Power Rating DC, 848 Ω Coil Resistance.
Features
- Clear white printing
- Flexible snap on moun
- Insert funnel for pins
Applications
- Interface technology
- Panel board
- Mechanical engineering
- Plant control
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | coupling relay | |
| Contact type | 1 Form C (NO/NC) | |
| Rated current | 6 A | |
| Coil voltage (DC) | 12 V | |
| Coil type | monostable | |
| Rated voltage (AC) | 400 V | |
| Coil resistance | 848 Ω | |
| Connection | screw connection | |
| Contact material | AgSnO |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
