DZ5CE042 | Schneider Electric
Insulated wire end ferrule, 4.0 mm², 17 mm long, NF C 63-023, orange, DZ5CE042
Unit Price (€ / pc.)
0.1309 € *
Available in 3 Days: 28,000 pcs. - if ordered today
Total Price:
0.65 € *
Price list
Quantity
Price per unit*
5 pcs.
0.1309 €
100 pcs.
0.1190 €
250 pcs.
0.1071 €
500 pcs.
0.0952 €
1000 pcs.
0.0833 €
*incl. VAT plus shipping costs
Subject to prior sale

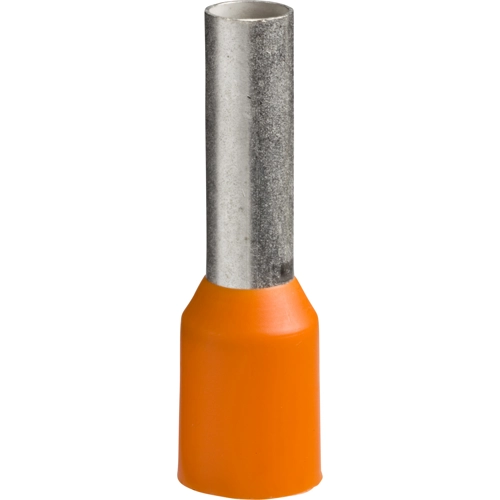

Cable end, DZ5CE042, Schneider Electric
Linergy cable end insulated without marker tag holder. It applied to single conductor with 4 mm² cable cross section. It has orange surface treatment. It is medium size without marker tag holder. Packing by string of bags and quantity per set is 10 sets of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is UL certified. It is compliant with Green Premium (RoHS/REACH).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 4.0 mm² | |
| Length | 17 mm | |
| Isolated | Yes | |
| max. operating temperature | 105 °C | |
| Colour | orange | |
| Standard number | NF C 63-023 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 74198090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| SVHC free | Yes |
| RoHS conform | Yes |
