DZ5CA007 | Schneider Electric
Insulated wire end ferrule, 0.75 mm², 14 mm long, NF C 63-023, blue, DZ5CA007
Unit Price (€ / pc.)
0.1309 € *
Available in 3 Days: 15,700 pcs. - if ordered today
Total Price:
0.65 € *
Price list
Quantity
Price per unit*
5 pcs.
0.1309 €
100 pcs.
0.1190 €
250 pcs.
0.1071 €
500 pcs.
0.0952 €
1000 pcs.
0.0833 €
*incl. VAT plus shipping costs
Subject to prior sale

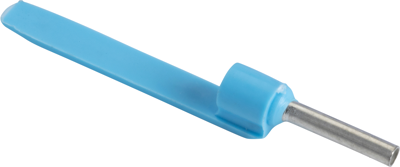

Cable end, DZ5CA007, Schneider Electric
Linergy cable end insulated markable with integrated marker tag holder. It applied to single conductor with 0.75 mm² cable cross section. It has with blue surface treatment. It is medium size with integrated marker tag holder. Packing by string of bags and quantity per set is 10 sets of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is UL certified. It is compliant with Green Premium (RoHS/REACH).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 105 °C | |
| Standard number | NF C 63-023 | |
| Length | 14 mm | |
| Colour | blue | |
| Isolated | Yes | |
| Cable cross-section | 0.75 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74198090 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Sustainable | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
