VW3A7754 | Schneider Electric
Braking resistor, 19 kW, 250 V, for Altivar series, VW3A7754
Unit Price (€ / pc.)
2,918.6297 € *
Standard delivery time from the manufacturer is: 1 Week

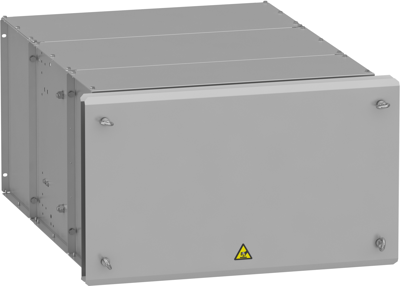

Braking resistor, VW3A7754, Schneider Electric
This braking resistor is an option for variable speed drives of Altivar range. It has an Ohmic value of 10Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. Its protection index is IP23. It weighs 67kg. This resistor is designed to be mounted on the outside of the enclosure, but should not inhibit natural cooling, air inlets and outlets must not be obstructed in any way.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 860 mm | |
| Rated voltage | 250 V | |
| Power | 19 kW | |
| Width | 540 mm | |
| Suitable for | Altivar series | |
| Height | 1035 mm | |
| Version | braking resistor |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85332900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
