VW3A7752 | Schneider Electric
Braking resistor, 5.1 kW, 250 V, for Altivar series, VW3A7752
Unit Price (€ / pc.)
892.9998 € *
Standard delivery time from the manufacturer is: 1 Week

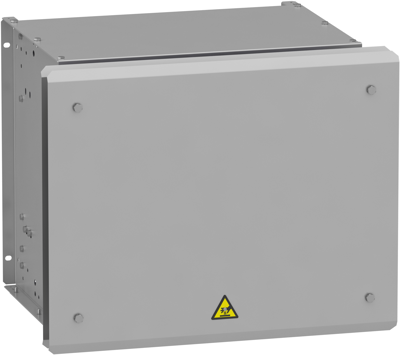

Braking resistor, VW3A7752, Schneider Electric
This braking resistor is an option for variable speed drives of Altivar range. It has an Ohmic value of 28Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. Its protection index is IP23. It weighs 25kg. This resistor is designed to be mounted on the outside of the enclosure, but should not inhibit natural cooling, air inlets and outlets must not be obstructed in any way.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 485 mm | |
| Version | braking resistor | |
| Power | 5.1 kW | |
| Depth | 650 mm | |
| Rated voltage | 250 V | |
| Width | 540 mm | |
| Suitable for | Altivar series |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332900 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
