VW3A7743 | Schneider Electric

Braking resistor, 2.2 kW, 250 V, for Altivar series, VW3A7743

Order No.: 06N0086
EAN: 3606480802362
MPN:
VW3A7743
VW3A7743 Schneider Electric Variable speed drive and Accessories

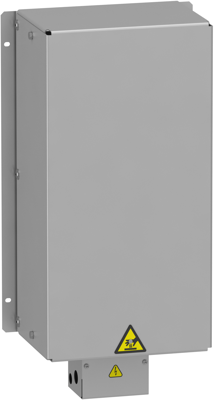

Image may differ
Unit Price (€ / pc.)
784.3647 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
784.36 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
784.3647 €

Braking resistor, VW3A7743, Schneider Electric

This braking resistor is an option for variable speed drives of Altivar range. It has an Ohmic value of 16Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. Its protection index is IP20. It weighs 7kg. This resistor is designed to be mounted on the outside of the enclosure.

Technical specifications
Filter Property Value
Height 570 mm
Version braking resistor
Power 2.2 kW
Depth 180 mm
Rated voltage 250 V
Width 290 mm
Suitable for Altivar series
Logistics
Property Value
Customs tariff number 85332900
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
