VW3A7725 | Schneider Electric
Braking resistor, 35 W, for Altivar series, VW3A7725
Unit Price (€ / pc.)
193.7677 € *
Standard delivery time from the manufacturer is: 1 Week

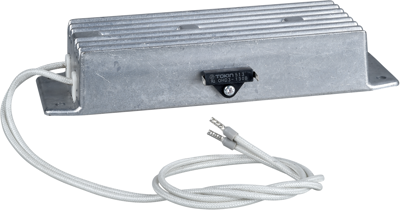

Braking resistor, VW3A7725, Schneider Electric
This braking resistoris an option for variable speed drives of Altivar ranges. It has an Ohmic value of 100Ohms at 20°C and its protection index is IP00. It is compatible with Altivar 312, Altivar 312 solar, easy Altivar 310 and easy Altivar 310L ranges. the power available is 35W at 50°c and 40W at 40°c. It weighs 0.850kg and its dimensions are, 62mm wide, 195mm high, 36mm deep.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 36 mm | |
| Power | 35 W | |
| Width | 62 mm | |
| Suitable for | Altivar series | |
| Height | 212 mm | |
| Version | braking resistor |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85332900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
