VW3A7705 | Schneider Electric

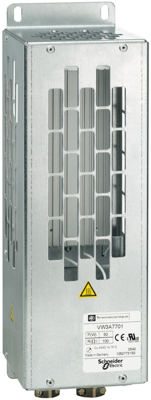

Braking resistor, 1000 W, 250 V, for Altivar series, VW3A7705

Order No.: 06N0102
EAN: 3389118065772
MPN:
VW3A7705
Series: ALTIVAR 31
VW3A7705 Schneider Electric Variable speed drive and Accessories
Image may differ
Unit Price (€ / pc.)
719.5454 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
719.55 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
719.5454 €

Braking resistor, VW3A7705, Schneider Electric

This braking resistor is an option for variable speed drives of the Altivar range and servo drives of the Lexium range. It dissipates the braking energy and enables maximum transient braking torque. It has an Ohmic value of 100Ohms at 20°C, and its protection index is IP20. The braking resistor continuous power is 1000W. Its protection index is IP20. It weighs 11kg and its dimensions are, 240mm wide, 484mm high, and 301mm deep.

Technical specifications
Depth 301 mm
Width 240 mm
Height 484 mm
Power 1000 W
Version braking resistor
Suitable for Altivar series
Rated voltage 250 V
Logistics
Country of origin DE
Customs tariff number 85332900
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
