VW3A7703 | Schneider Electric

Braking resistor, 200 W, 250 V, for Altivar series, VW3A7703

Order No.: 06N0104
EAN: 3389118065758
MPN:
VW3A7703
VW3A7703 Schneider Electric Variable speed drive and Accessories

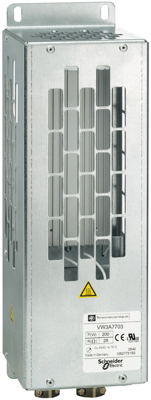

Image may differ
Unit Price (€ / pc.)
378.3605 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
378.36 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
378.3605 €

Braking resistor, VW3A7703, Schneider Electric

This braking resistor is an option for variable speed drives of Altivar range. It dissipates the braking energy, and enables maximum transient braking torque. It has an Ohmic value of 28Ohms at 20°C and its protection index is IP20. It is compatible with Altivar 312, Altivar 31, Altivar 32, Altivar 61, Altivar 71 and Altivar easy 310. Its protection index is IP20. It weighs 3.5kg. This resistor is designed to be mounted on the outside of the enclosure, but should not inhibit natural cooling, air inlets and outlets must not be obstructed in any way.

Technical specifications
Depth 120 mm
Width 140 mm
Height 393 mm
Power 200 W
Version braking resistor
Suitable for Altivar series
Rated voltage 250 V
Logistics
Country of origin DE
Customs tariff number 85332900
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
