VW3A7101 | Schneider Electric
Braking resistor module, 200 kW, 400 V, for frequency converter, VW3A7101
Unit Price (€ / pc.)
5,382.5247 € *
Standard delivery time from the manufacturer is: 1 Week

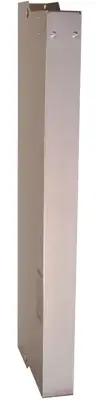

Resistance braking unit, VW3A7101, Schneider Electric
This braking unit is an option for variable speed drives of Altivar range. The minimum resistor value to associate is 1Ohm. This braking unit allows Altivar 71 drives to operate while braking to a standstill or during “generator” operation, by dissipating the energy in the braking resistor. Its protection index is IP20. Thermal protection is provided by an integrated temperature probe. It weighs 30kg.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Suitable for | frequency converter | |
| Power | 200 kW | |
| Rated voltage | 400 V | |
| Version | braking resistor module |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85049090 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
