VW3A5406 | Schneider Electric
Sine output filter, 180 A for frequency converter, VW3A5406
Unit Price (€ / pc.)
4,381.3182 € *
Standard delivery time from the manufacturer is: 1 Week

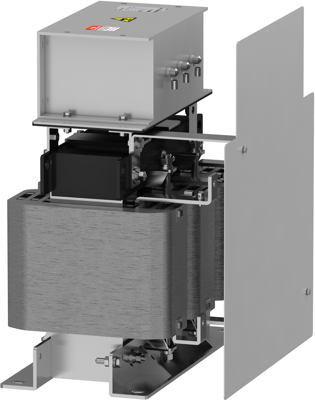

Sinus filter, VW3A5406, Schneider Electric
This sinus filter is an option for variable speed drives of Altivar Process ATV600 / ATV900 range. Its rated current is equal to 180A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP00. It weighs 90kg. It is used for applications requiring long cable runs, motors connected in parallel, submersible pumps sensitive to dv/dt, an intermediate transformer between the drive and the motor.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 350 mm | |
| Version | sine output filter | |
| Output current | 180 A | |
| Depth | 495 mm | |
| Width | 430 mm | |
| Suitable for | frequency converter |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85480090 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
