VW3A5401 | Schneider Electric
Sine output filter, 6 A for frequency converter, VW3A5401
Unit Price (€ / pc.)
655.7019 € *
Standard delivery time from the manufacturer is: 1 Week

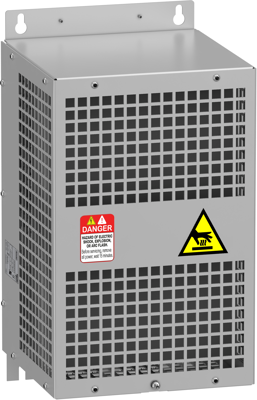

Sinus filter, VW3A5401, Schneider Electric
This sinus filter is an option for variable speed drives of Altivar Process ATV600 / ATV900 range. Its rated current is equal to 6A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP20. It weighs 10kg. It is used for applications requiring long cable runs, motors connected in parallel, submersible pumps sensitive to dv/dt, an intermediate transformer between the drive and the motor.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 220 mm | |
| Depth | 210 mm | |
| Suitable for | frequency converter | |
| Output current | 6 A | |
| Version | sine output filter | |
| Height | 455 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85480090 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
