VW3A5306 | Schneider Electric
Output filter, 180 A for frequency converter, VW3A5306
Unit Price (€ / pc.)
1,114.1137 € *
Standard delivery time from the manufacturer is: 1 Week

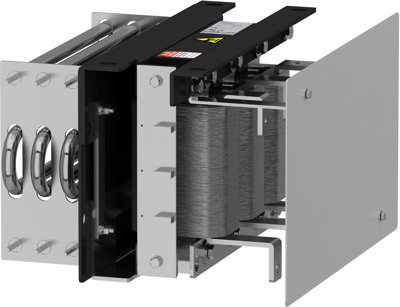

Dv/dt filter, VW3A5306, Schneider Electric
This dv/dt filter is an option for variable speed drives of Altivar Process ATV600 / ATV900 range. Its rated current is equal to 180A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP00. It weighs 22kg. It is used to limit overvoltages at the motor terminals, filter interference and reduce motor earth leakage current.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | Du/dt output filter | |
| Suitable for | frequency converter | |
| Output current | 180 A | |
| Width | 380 mm | |
| Height | 350 mm | |
| Depth | 235 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85480090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
