VW3A5303 | Schneider Electric

Output filter, 25 A for frequency converter, VW3A5303

Order No.: 06N0119
EAN: 3606480736704
MPN:
VW3A5303
VW3A5303 Schneider Electric Variable speed drive and Accessories
Image may differ
Unit Price (€ / pc.)
437.0275 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
437.03 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
437.0275 €

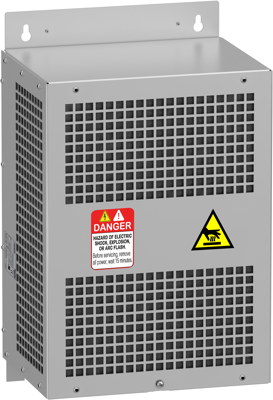

Dv/dt filter, VW3A5303, Schneider Electric

This dv/dt filter is an option for variable speed drives of Altivar Process ATV600 / ATV900 range. Its rated current is equal to 25A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP20. It weighs 12kg. It is used to limit overvoltages at the motor terminals, filter interference and reduce motor earth leakage current.

Technical specifications
Filter Property Value
Height 535 mm
Version Du/dt output filter
Output current 25 A
Depth 215 mm
Width 295 mm
Suitable for frequency converter
Logistics
Property Value
Customs tariff number 85480090
Country of origin CN
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
