VW3A5209 | Schneider Electric

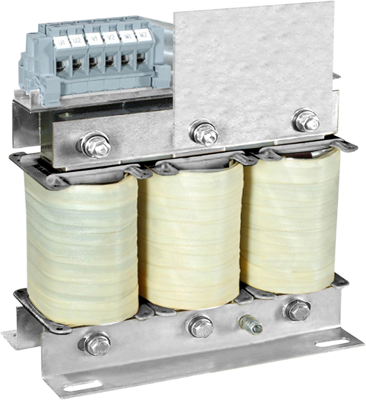

Sine filter, 400 A for frequency converter, VW3A5209
Unit Price (€ / pc.)
11,839.7027 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
11,839.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
11,839.7027 €
Sinus filter, VW3A5209, Schneider Electric
This sinus filter is an option for variable speed drives of Altivar range. Its rated current is equal to 400A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP00. It weighs 190kg. It is used for applications requiring long cable runs, motors connected in parallel, submersible pumps sensitive to dv/dt, an intermediate transformer between the drive and the motor.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | sine filter | |
| Suitable for | frequency converter | |
| Output current | 400 A | |
| Width | 480 mm | |
| Height | 600 mm | |
| Depth | 340 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85480090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
