VW3A5104 | Schneider Electric
Motor choke, 215 A for frequency converter, VW3A5104
Unit Price (€ / pc.)
807.2365 € *
Standard delivery time from the manufacturer is: 1 Week

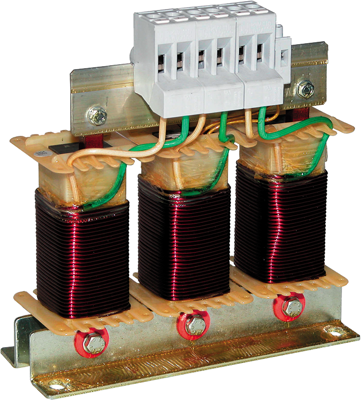

Motor choke, VW3A5104, Schneider Electric
This motor choke is an option for variable speed drives of Altivar 61 / Altivar 71 range. Its rated current equal to 215A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP00. It weighs 15.5kg. It is used to limit overvoltages at the motor terminals, filter interference and reduce motor earth leakage current. It is sold in indivisible quantity of 3.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 100 mm | |
| Height | 250 mm | |
| Output current | 215 A | |
| Width | 170 mm | |
| Suitable for | frequency converter | |
| Version | motor choke |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
