VW3A1101 | Schneider Electric
Graphic terminal, for ATV31/61/71, VW3A1101
Order No.: 06N0729
EAN: 3389118069305
MPN:
VW3A1101
Unit Price (€ / pc.)
317.3492 € *
Available in 3 Days: 16 pcs. - if ordered today

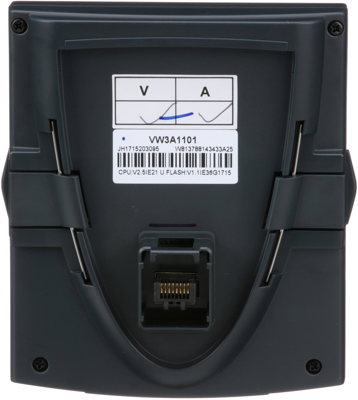

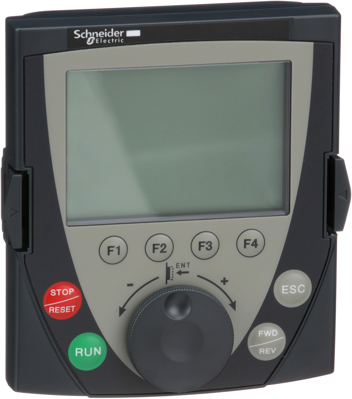

Remote graphic terminal, VW3A1101, Schneider Electric
Altivar 71 Variable Frequency Drive is for constant torque applications from 1 to 700 HP. For the latest in high performance drive for heavy duty applications consider using an Altivar Process ATV900 drive. Its protection index is IP54. This terminal is used to locate the Human-Machine Interface of the Altivar drive remotely on the door of an enclosure. Its maximum operating temperature is 50 °C. It provides a pixel resolution of 240 x 160 pixels. It weighs 180g. It is used to control, adjust and configure the drive, display the current values (motor, input/output values, etc), save and download configurations, 4 configuration files can be saved. A remote-mounting cordset VW3A1104Rxx is also required, to be ordered separately.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Suitable for | ATV31/61/71 | |
| Version | graphic terminal |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
