ATV930C16N4F | Schneider Electric
Frequency converter, 3-phase, 160 kW, 440 V, 302 A for synchronous/asynchronous motors, ATV930C16N4F
Unit Price (€ / pc.)
17,838.5641 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
17,838.56 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
17,838.5641 €

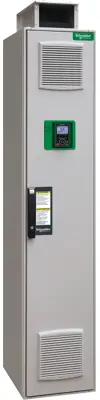

Frequency converter, ATV930C16N4F, Schneider Electric
The altivar process ATV900 is a variable speed drive designed for industrial applications, with the floor-standing ATV930 model capable of handling up to 160kW of power at voltages ranging from 400 to 440V. This drive does not come with a braking unit and has an IP21 protection rating.
Features
- Embedded power measurement and energy dashboard
- Embedded process monitoring and control
- Stop and Go function to reduce energy consumption
- Asset monitoring and protection
- Drift monitoring
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | frequency converter | |
| Suitable for | synchronous/asynchronous motors | |
| Power | 160 kW | |
| Number of phases | 3 | |
| Rated voltage | 440 V | |
| Output current | 302 A | |
| Width | 400 mm | |
| Height | 2150 mm | |
| Depth | 605 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
