ATV650D11N4U | Schneider Electric
Frequency converter, 3-phase, 11 kW, 480 V, 23.5 A for synchronous/asynchronous motors, ATV650D11N4U
Unit Price (€ / pc.)
2,265.4506 € *
Standard delivery time from the manufacturer is: 6 Weeks

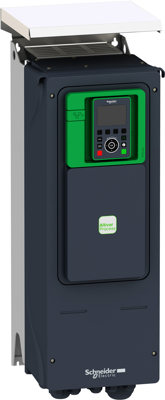

Frequency converter, ATV650D11N4U, Schneider Electric
The Altivar Process ATV600/ATV650 is a variable speed drive with a power rating of 11kW and a voltage range of 400 to 480V. It is designed to operate in environments with an IP55 protection rating.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | frequency converter | |
| Suitable for | synchronous/asynchronous motors | |
| Power | 11 kW | |
| Number of phases | 3 | |
| Rated voltage | 480 V | |
| Output current | 23.5 A | |
| Width | 264 mm | |
| Height | 678 mm | |
| Depth | 299 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
