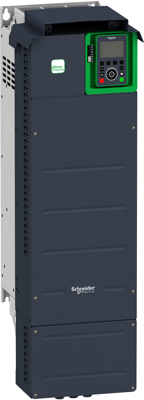

Frequency converter, ATV630D75N4428, Schneider Electric
The ATV630 variable speed drive has a power rating of 75 kW/100 HP and is designed for use with 380-480V power systems. It is rated IP21/UL Type 1 and has marine certification, making it suitable for use in marine environments.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | frequency converter | |
| Suitable for | synchronous/asynchronous motors | |
| Power | 75 kW | |
| Number of phases | 3 | |
| Rated voltage | 480 V | |
| Output current | 145 A | |
| Width | 290 mm | |
| Height | 922 mm | |
| Depth | 323 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
