ATV340U15N4S | Schneider Electric
Frequency converter, 3-phase, 1.5 kW, 400 V, 4 A, ATV340U15N4S
Unit Price (€ / pc.)
772.4647 € *
Standard delivery time from the manufacturer is: 9 Weeks

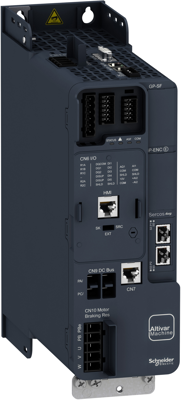

Frequency converter, ATV340U15N4S, Schneider Electric
This product is part of the Altivar 340 range, an offer of variable speed drives from 0.75kW to 75kW. This variable speed drive features an integrated EMC filter conforming to category C3. It is designed for 3-phase AC asynchronous and synchronous motors with a maximum power of 1.5kW/2HP for heavy duty and 2.2kW/3HP for normal duty.
It is a 3-phase variable speed drive with a rated supply voltage of 380V to 480V, a frequency of 50/60Hz and a continuous output current of 5.6A at 4kHz. It is furnished with screw terminals for electrical connection and 3 RJ45 connectors for Modbus serial communication. It is an IP20 rated product.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 232.5 mm | |
| Height | 270 mm | |
| Number of phases | 3 | |
| Output current | 4 A | |
| Width | 85 mm | |
| Rated voltage | 400 V | |
| Power | 1.5 kW | |
| Version | frequency converter |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | ID |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
