APM1B0C16N4 | Schneider Electric
Regenerative module, 3-phase, 160 kW, 480 V, for Altivar Process Modular, APM1B0C16N4
Unit Price (€ / pc.)
30,819.4887 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
30,819.49 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
30,819.4887 €

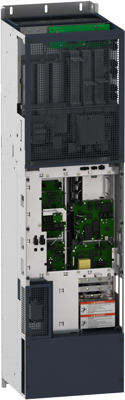

Power module, APM1B0C16N4, Schneider Electric
This LH/Recovery power module is a component of the altivar technology modular drive.This drive power module powers 3-phase asynchronous and asynchronous motors. It works at a nominal supply voltage of 380V - 480V. The power is 160 kW. Integrates into the cabinet. It is part of the altivar process modular offering for demanding applications. The kit consists of a power supply module, three fuse holders, as well as screws and washers for the fuse. Contact your APM partner for installation information. This kit consists of a power module, three fuse holders, and fuse screws and washers.
Features
- Motor performance and connectivity
- Complete control of your applications
- Web server and services via Ethernet
- Simple integration in PLC environments
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of phases | 3 | |
| Height | 1722 mm | |
| Version | LH/feedback module | |
| Power | 160 kW | |
| Depth | 508 mm | |
| Rated voltage | 480 V | |
| Width | 450 mm | |
| Suitable for | Altivar Process Modular |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
