APM1A0C20Y6RH | Schneider Electric
Power supply module, 3-phase, 200 kW, 690 V, for Altivar Process Modular, APM1A0C20Y6RH
Unit Price (€ / pc.)
14,969.843 € *
Standard delivery time from the manufacturer is: 1 Week

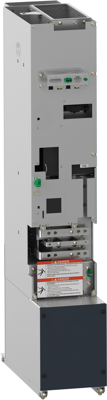

Power supply module, APM1A0C20Y6RH, Schneider Electric
This standard power module is part of the altivar process modular architecture. It operates at a nominal supply voltage of 500V-690V and can power synchronous and asynchronous motors. Power 200 kW/200 hp. under normal operating conditions (160 kW/175 hp under severe operating conditions). Designed for low-height architectures and has a built-in C3 EMC filter. Consists of 1 power module, 1 power supply, 1 48V fan power supply, 1 fan relay, 3 fuse holders and 2 brackets with fuse nuts, screws and washers. Integrates into the cabinet. Weight 100 kg. It is part of the altivar process modular offering for demanding applications.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of phases | 3 | |
| Height | 1230 mm | |
| Version | power supply module | |
| Power | 200 kW | |
| Depth | 510 mm | |
| Rated voltage | 690 V | |
| Width | 230 mm | |
| Suitable for | Altivar Process Modular |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
