REXL4TMBD | Schneider Electric
Time relay, 0.1 s to 100 h, delayed switch-on, 4 Form C (NO/NC), 24 VDC, 5 A/250 VAC, REXL4TMBD
Unit Price (€ / pc.)
47.7785 € *
Standard delivery time from the manufacturer is: 1 Week

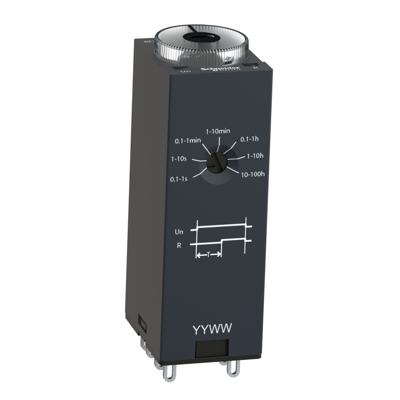

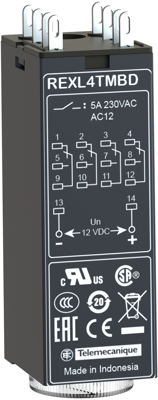

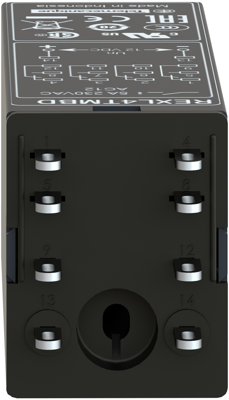

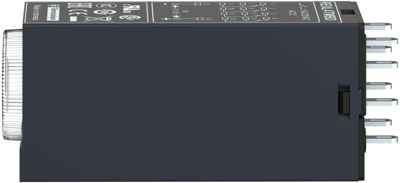

Response delayed time relay, REXL4TMBD, Schneider Electric
This Zelio REXL timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 5 A, is 48 mm wide and can be supplied with 24V DC. It is a plug-in device, meaning it is quick and easy to install with the need for tools. It also offers a sealable cover, simple and precise settings with rotary trimmers. It is designed for socket plug in, this allows quick and easy installation and minimizes set up and repair time. Status display with 2 LEDs: visually inspect the status of you system without specialized tools.
Technical specifications
| Time display | 0.1 s to 100 h | |
| Function | delayed switch-on | |
| Contact type | 4 Form C (NO/NC) | |
| Voltage | 24 VDC | |
| Breaking capacity | 5 A/250 VAC | |
| Connection | push-in |
Download
Logistics
| Country of origin | ID |
| Customs tariff number | 91070000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | 1, 2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) |
| SVHC free | No |
| RoHS conform | Yes |
| Sustainable | Yes |
