REXL4TMB7 | Schneider Electric
Time relay, 0.1 s to 100 h, delayed switch-on, 4 Form C (NO/NC), 24 VAC, 5 A/250 VAC, REXL4TMB7
Unit Price (€ / pc.)
46.8265 € *
Standard delivery time from the manufacturer is: 1 Week

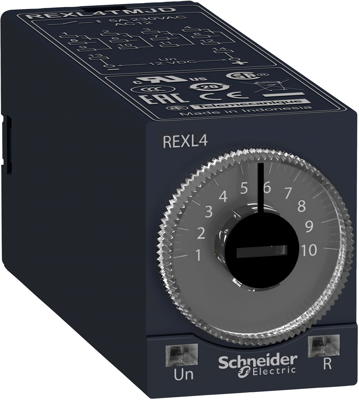

Response delayed time relay, REXL4TMB7, Schneider Electric
This Zelio REXL ON-delay timer can be set between 0.1 seconds and 100 hours. It provides function A and it uses plug-in mounting. This modular ON-delay timer is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It is a plug-in device, meaning it is quick and easy to install with the need for tools. It also offers a sealable cover, simple and precise settings with rotary trimmers. It is designed for socket plug in, this allows quick and easy installation and minimizes set up and repair time. Single function timer for a simple integration in hard-wired logic schematics: ideal for refurbishment of old installations without using a PLC.
Technical specifications
| Time display | 0.1 s to 100 h | |
| Function | delayed switch-on | |
| Contact type | 4 Form C (NO/NC) | |
| Voltage | 24 VAC | |
| Breaking capacity | 5 A/250 VAC | |
| Connection | push-in |
Download
Logistics
| Country of origin | ID |
| Customs tariff number | 91070000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | 1, 2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) |
| SVHC free | No |
| RoHS conform | Yes |
| Sustainable | Yes |
