CCT15234 | Schneider Electric

Staircase timer switch, 0.5 to 60 min, delayed switch-off, 230 VAC, 16 A/230 VAC, CCT15234

Order No.: 02P4114
EAN: 3303431062645
MPN:
CCT15234
Series: MIN
CCT15234 Schneider Electric Time Relays
Image may differ
Unit Price (€ / pc.)
74.6844 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
74.68 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
74.6844 €

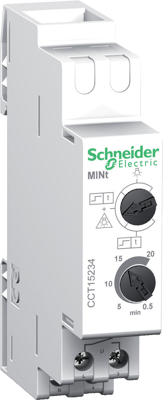

Electromechanical staircase time switch, CCT15234, Schneider Electric

Electronic staircase time switch, MINs-0.5, 20 min, remote switching function. Switch-on duration 30 sec. to 20 minutes, additionally for MINp and MINt long-term switch-on 1 hour continuous operation can be set on the front of the device. Current consumption for illuminated push-buttons max. 150 mA.

Technical specifications
Filter Property Value
Function delayed switch-off
Connection screw connection
Breaking capacity 16 A/230 VAC
Voltage 230 VAC
Time display 0.5 to 60 min
Logistics
Property Value
Customs tariff number 91070000
Country of origin DE
Compliance
Property Value
Substance description Lead
Sustainable Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
