33683 | Schneider Electric
Time relay, 0.5 to 3 s, delayed switch-off, 380-480 V AC/DC, 33683
Unit Price (€ / pc.)
432.8744 € *
Standard delivery time from the manufacturer is: 2 Weeks

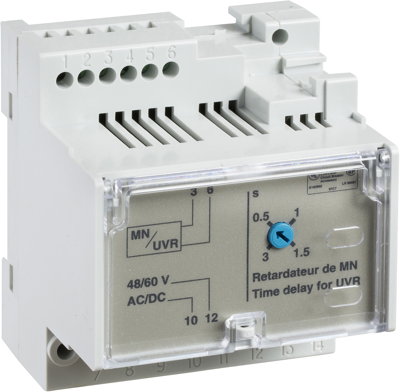

Waste delay unit, 33683, Schneider Electric
This time delay unit is an auxiliary that can be combined with an undervoltage release (MN). It must be associated with a 380-480 VAC MN undervoltage release. It eliminates the risk of nuisance tripping due to transient voltage dips lasting from 200 ms to 3 s. Its power supply is 380-480VDC or 380-480VAC 50/60 Hz. This time delay unit has 4 adjustable steps (0.5 s - 1 s - 1.5 s - 3 s). It is an external accessory and can be mounted in the switchboard.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Voltage | 380-480 V AC/DC | |
| Function | delayed switch-off | |
| Time display | 0.5 to 3 s |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
