Time relay, 0.5 to 3 s, delayed switch-off, 48-60 V AC/DC, 33680

Order No.: 01P4326
EAN: 4099889298628
MPN:
33680
Series: PowerPact
33680 Schneider Electric Time Relays
Image may differ
Unit Price (€ / pc.)
437.3369 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
437.34 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
437.3369 €

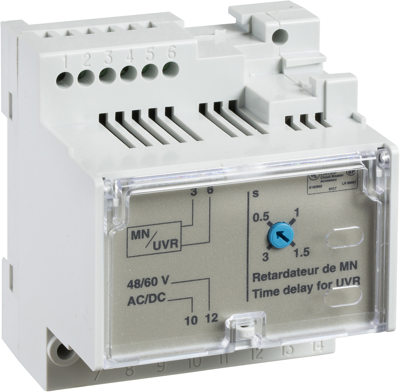

Waste delay unit, 33680, Schneider Electric

This time delay unit is an auxiliary that can be combined with an undervoltage release (MN). It must be associated with a 48V DC MN undervoltage release. It eliminates the risk of nuisance tripping due to transient voltage dips lasting from 200 ms to 3 s. Its power supply is 48-60VDC or 48-60VAC 50/60 Hz. This time delay unit has 4 adjustable steps (0.5 s - 1 s - 1.5 s - 3 s). It is an external accessory and can be mounted in the switchboard.

Technical specifications
Voltage 48-60 V AC/DC
Connection screw connection
Time display 0.5 to 3 s
Function delayed switch-off
Logistics
Country of origin FR
Customs tariff number 85389099
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
