NSYTRV352 | Schneider Electric

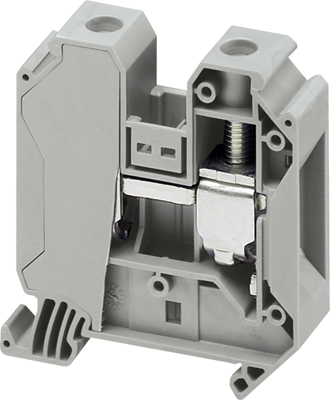

Terminal block, 2 pole, 1.5-50 mm², clamping points: 2, gray, screw connection, 125 A, NSYTRV352

Order No.: 04P3862
EAN: 4099891040789
MPN:
NSYTRV352
Series: Linergy
NSYTRV352 Schneider Electric Terminal Blocks
Image may differ
Unit Price (€ / pc.)
9.2582 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
9.26 € *
Price list
Quantity
Price per unit*
1 pcs.
9.2582 €
5 pcs.
8.8298 €
10 pcs.
8.4371 €
25 pcs.
7.9730 €
50 pcs.
7.5565 €
*incl. VAT plus shipping costs
Subject to prior sale

Terminal block, NSYTRV352, SCHNEIDER

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 35 mm² nominal cross section. The rated operational voltage is 600 V conforming to CSA/cURus, 1000 V conforming to EN/IEC 60947-7-1 and 690 V conforming to ATEX Exe II Ex II 2 GD. The rated current is 125 A conforming to EN/IEC 60947-7-1, 150 A conforming to CSA/cURus and 126A conforming to ATEX Exe II Ex II 2 GD. It has grey surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connected and disconnected by a screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Ambient air temperature for operation is from - 40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, GL, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).

Features

  • Releasing pressure on the sides stops the flow of cable ends
  • Facilitates storage by avoiding mixing cable ends of different sizes
  • Identifies the cross section of cable ends it contains
  • Environmental performance of the product
Technical specifications
Colour gray
Rated current 125 A
Cable cross-section 1.5-50 mm²
Number of terminals 2
Pin number 2 pole
Version terminal block
Connection screw connection
Logistics
Country of origin TR
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
Sustainable Yes
