NSYTRV26T | Schneider Electric

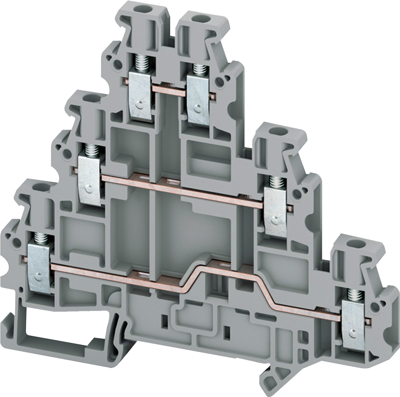

Terminal block, 0.2-2.5 mm², clamping points: 6, gray, screw connection, 20 A, NSYTRV26T

Order No.: 04P3861
EAN: 3606480531880
MPN:
NSYTRV26T
Series: Linergy
NSYTRV26T Schneider Electric Terminal Blocks
Image may differ
Unit Price (€ / pc.)
11.5073 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
11.51 € *
Price list
Quantity
Price per unit*
1 pcs.
11.5073 €
5 pcs.
10.9956 €
10 pcs.
10.5196 €
25 pcs.
9.9484 €
*incl. VAT plus shipping costs
Subject to prior sale

Terminal block, NSYTRV26T, SCHNEIDER

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 500 V conforming to EN/IEC 60947-7-1. The rated current is 20 A conforming to EN/IEC 60947-7-1. It has grey surface treatment. Mounting by clip-on and sideways connection by three-level 1x1 screw terminals. It could be connected and disconnected by a screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Ambient air temperature for operation is from - 40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (CSA, cURus, EAC). It is compliant with Green Premium (RoHS/REACH).

Features

  • Releasing pressure on the sides stops the flow of cable ends
  • Facilitates storage by avoiding mixing cable ends of different sizes
  • Identifies the cross section of cable ends it contains
  • Environmental performance of the product
Technical specifications
Filter Property Value
Number of terminals 6
Colour gray
Rated current 20 A
Cable cross-section 0.2-2.5 mm²
Version terminal block
Connection screw connection
Logistics
Property Value
Customs tariff number 85369010
Country of origin PL
Compliance
Property Value
RoHS conform Yes
Sustainable Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
