ZD4PA103 | Schneider Electric

Auxiliary switch block, 2 Form A (N/O), 240 V, 3 A, ZD4PA103

Order No.: 06P5051
EAN: 4099889164794
MPN:
ZD4PA103
Series: Harmony XB4

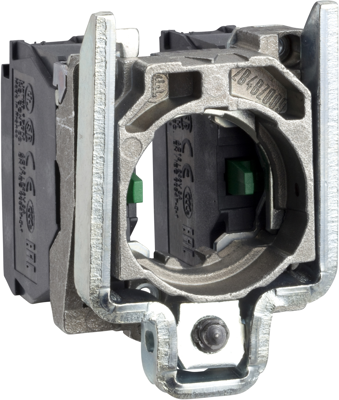

ZD4PA103 Schneider Electric Switching Elements
Image may differ
Unit Price (€ / pc.)
13.8278 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
13.83 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
13.8278 €

Contact block, ZD4PA103, Schneider Electric

This contact block operates with 2 directions and uses screw-clamp terminals. It has a chromium-plated metal bezel. This contact block is pre-mounted to a body fixing collar and allow fast and easy replacement and configuration of your joystick controllers with 2-direction operation. It is easily installed and replaced on XB4 complete joystick controllers and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance allows less maintenance and damage in your installation. It has clear color scheme for NO and NC contact block types.

Technical specifications
Rated current 3 A
Version auxiliary switch block
Connection screw connection
Isolation voltage 600 V
Latching switching function 2 Form A (N/O)
Contact material silver
Rated voltage 240 V
can be illuminated No
Logistics
Country of origin FR
Customs tariff number 85365080
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
Sustainable Yes
