ZALVB1 | Schneider Electric

White light block for head Ø22 integral LED 24 V - screw clamp terminals

Order No.: 06P1097
EAN: 4099889253641
MPN:
ZALVB1
Series: Harmony XAL

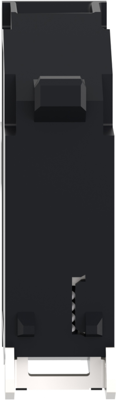

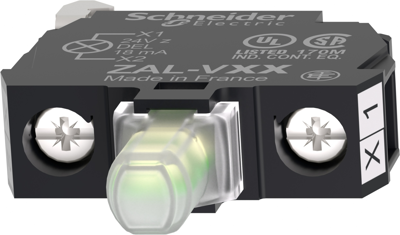

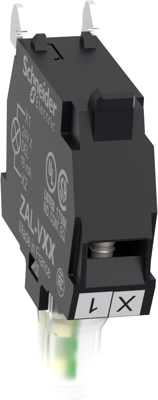

ZALVB1 Schneider Electric Switching Elements Image 1
ZALVB1 Schneider Electric Switching Elements Image 2
ZALVB1 Schneider Electric Switching Elements Image 3
Image may differ
Unit Price (€ / pc.)
9.7937 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
9.79 € *
Price list
Quantity
Price per unit*
1 pcs.
9.7937 €
5 pcs.
9.3534 €
10 pcs.
8.9607 €
15 pcs.
8.4728 €
*incl. VAT plus shipping costs
Subject to prior sale

Light block, ZALVB1, Schneider Electric

This white light block with integral LED allows fast and easy replacement and configuration of your signaling units. It is supplied with 24V AC/DC and it connects with simple screw-clamp connections. It is easily installed on compatible illuminated push button or selector switch units via clip together assembly. It is compatible with Harmony XB5 diameter 22mm control and signaling units. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.

Technical specifications
Version auxiliary switch block
Connection screw connection
Isolation voltage 250 V
can be illuminated Yes
Logistics
Country of origin FR
Customs tariff number 85311030
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
Sustainable Yes
