VZN05 | Schneider Electric
Auxiliary switch, (L x W x H) 39 x 12 x 45.5 mm, for VN12/VN20, VZN05
Unit Price (€ / pc.)
8.3538 € *
Standard delivery time from the manufacturer is: 1 Week

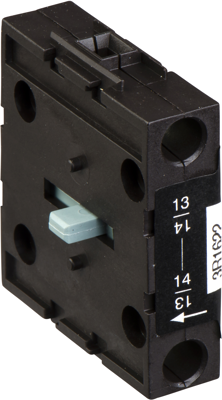

Auxiliary switch module, VZN05, Schneider Electric
TeSys Vario add-on module, auxiliary contact block, for TeSys mini-Vario VN12 and VN20 switch bodies. It includes 1NO late make contact rated for AC operation until 12A/690V and DC operation until 8A/250V. To be mounted on one side of the switch body. A maximum of 2 additional auxiliary contact block modules VZN05 or VZN06 can be attached to the switch body, one in each side. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 45.5 mm | |
| Width | 12 mm | |
| Suitable for | VN12/VN20 | |
| Length | 39 mm | |
| Product type | auxiliary switch |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
