VN12 | Schneider Electric
Main contact module, 3 pole, 12 A, 690 VAC, (L x W x H) 62 x 56 x 46.5 mm, for load-break switch, VN12
Unit Price (€ / pc.)
11.3883 € *
Available in 3 Days: 34 pcs. - if ordered today

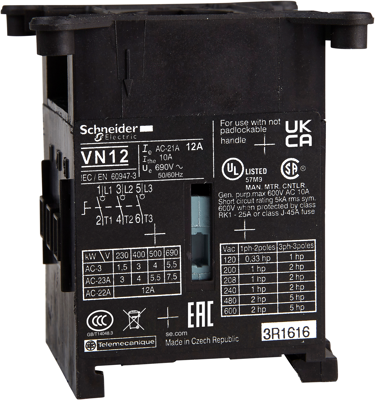

Main contact module, VN12, Schneider Electric
TeSys mini-Vario switch body, 3 poles, 12A/690V, for motor switching applications up to 4kW@400V AC-23. It can be used to switch DC circuits until 250V DC DC-1 to DC-5, by use of contacts in series. It provides capability to have mounted until 2 add-on modules, connection by screw terminals, mounting on DIN-rail or by screw fixing. To be equipped with an handle to form an operational switch-disconnector, several models of handles are available. Add-on modules (main pole, neutral pole, earthing module, auxiliary contacts) and mounting accessories are available (to be ordered separately). Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 56 mm | |
| Suitable for | load-break switch | |
| Length | 62 mm | |
| Version | 3 pole, 12 A, 690 VAC | |
| Product type | main contact module | |
| Height | 46.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85362010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| Sustainable | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
