VBFXGE1 | Schneider Electric
Enclosure, (L x W x H) 131 x 90 x 146 mm, black, for VN12-VN20/V02-V2, VBFXGE1
Unit Price (€ / pc.)
29.8809 € *
Standard delivery time from the manufacturer is: 2 Weeks

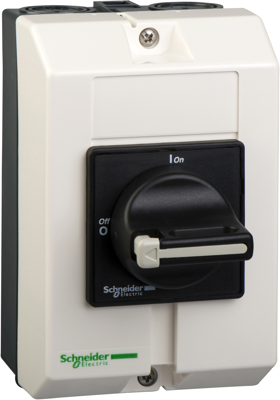

Housing, VBFXGE1, Schneider Electric
TeSys enclosed starters, empty enclosure for mounting a switch disconnector for main switching in motor applications up to 15kW@400V AC-23. Enclosure providing IP65 protection, fitted with a black rotary handle and black front plate, padlockable (padlocks not included). to be equipped with a Vario switch body VN12-VN20 or V02-V2 (to be ordered separately), with 2 possible add-on module attachments Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60947-4-1, Green Premium compliant (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 146 mm | |
| Colour | black | |
| Width | 90 mm | |
| Suitable for | VN12-VN20/V02-V2 | |
| Length | 131 mm | |
| Product type | enclosure |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85381000 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
