TRV00121 | Schneider Electric
Front display module, (L x W x H) 33.6 x 96 x 96 mm, for MTZ/NT/NW/NSX, TRV00121
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
477.5113 € *
Available in 3 Days: 24 pcs. - if ordered today

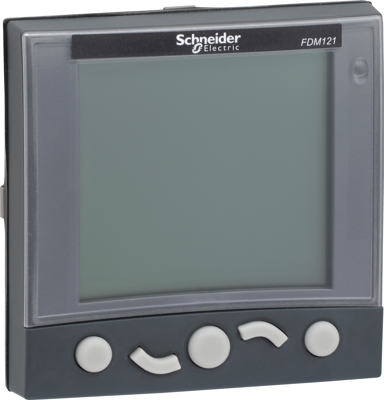

Display module, TRV00121, Schneider Electric
This FDM121 is an Ethernet switchboard display module and it is part of EnerlinX communication system. This display unit is compatible with Masterpact, Compact and PowerPact circuit breakers. FDM121 displays the measurements, alarms, and operating assistance data from one circuit breaker over ULP. Its LCD screen offers a high resolution with white backlighting. The FDM121 is equipped with a 24 VDC terminal block and two RJ45 sockets for ULP connection. It is easily installed in a switchboard, either through a standard door cut-out (92x92mm) or two 22 mm diameter holes.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | front display module | |
| Length | 33.6 mm | |
| Width | 96 mm | |
| Height | 96 mm | |
| Suitable for | MTZ/NT/NW/NSX |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85312095 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Electrical equipment take-back |  |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | 1,6,7,8,9,14,15,16,17,17,18,18-Dodecachloropentacyclo[12.2.1.16,9.02,13.05,10]octadeca-7,15-diene (“Dechlorane Plus”™) | Lead |
| Sustainable | Yes |
