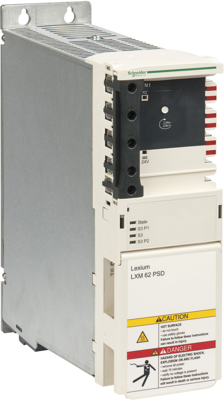

LXM62PD84A11000 | Schneider Electric
Drive, (L x W x H) 270 x 89.5 x 310 mm, for PacDrive 3, LXM62PD84A11000
Unit Price (€ / pc.)
2,687.1866 € *
Available in 3 Days: 6 pcs. - if ordered today
Power supply, LXM62PD84A11000, Schneider Electric
This product is part of the PacDrive 3 range, an offer of power supplies for integrated drives. The power supply module features SERCOS III communication interface. It offers 2 relay outputs for volt-free contacts. It is a power supply module with a rated supply voltage of 400V three phase, 230V single/three phase and a rated supply current of 21A single phase, 42A three phase AC. It is suitable for use in general machine control, packaging machine automation, material handling applications.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 270 mm | |
| Height | 310 mm | |
| Width | 89.5 mm | |
| Suitable for | PacDrive 3 | |
| Product type | drive |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Octamethylcyclotetrasiloxane |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
