LV430563 | Schneider Electric
Current sensor, for neutral conductor, external, for NSX160/250, LV430563
Unit Price (€ / pc.)
329.4872 € *
Standard delivery time from the manufacturer is: 1 Week

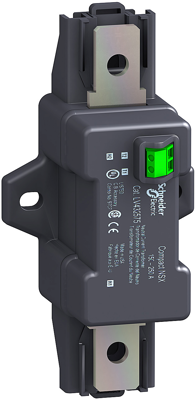

External neutral current transformer , LV430563, Schneider Electric
It is an external neutral current transformer (ENCT) for Compact NSX160/250 equipped with Micrologic 5/6 trip unit. With 3P devices, the distributed neutral of the installation can be protected by installing this external sensor. The sensor rated current is from 150 A to 250 A. The ENCT must be connected to the Micrologic trip unit by a shielded twisted pair. The wiring maximum length is 10 m and the cross section is from 0.4 mm² to 1.5 mm².
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | for neutral conductor, external | |
| Suitable for | NSX160/250 | |
| Product type | current converter |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85043129 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
