LV426861 | Schneider Electric

Shunt releases, 24 V AC/DC, for NSXm/PPB, LV426861

Order No.: 03P5062
EAN: 4099889306712
MPN:
LV426861
Series: Compact
LV426861 Schneider Electric Switches Accessories
Image may differ
Unit Price (€ / pc.)
151.8559 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
151.86 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
151.8559 €

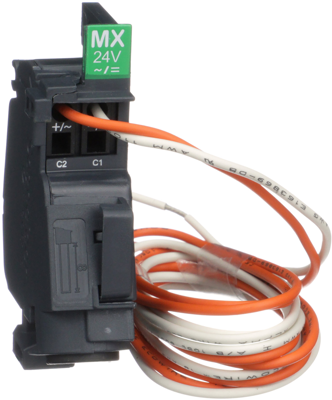

Shunt trip release, LV426861, Schneider Electric

This pre-wired MX shunt trip is used on Compact NSXm and PowerPact B devices. This auxiliary is used for emergency off or failsafe remote opening applications. It is a one click spring type auxiliary for quick and easy installation, visible from the front face of the device. This MX auxiliary has a 24 VAC 50/60 Hz or 24VDC rated voltage. It trips the circuit breaker when the control voltage rises above 70% of its rated value. It complies with IEC 60947-2 standard. Compact NSXm and PowerPact B embed either 1 MN or 1 MX coil.

Technical specifications
Product type shunt releases
Version 24 V AC/DC
Suitable for NSXm/PPB
Logistics
Country of origin FR
Customs tariff number 85389099
Compliance
Date of RoHS guidelines 3/31/15
Substance description 1, 2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME)
SVHC free No
RoHS conform Yes
Sustainable Yes
