LV426821 | Schneider Electric
Undervoltage release, 24 V AC/DC, for circuit breaker, LV426821
Unit Price (€ / pc.)
150.2375 € *
Standard delivery time from the manufacturer is: 1 Week

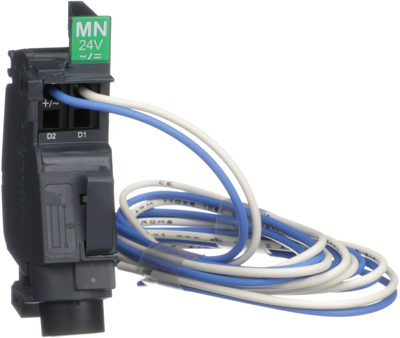

Voltage release, LV426821, Schneider Electric
This pre-wired MN undervoltage release is used on Compact NSXm and PowerPact B devices. This auxiliary is used for emergency off or failsafe remote tripping applications. It is a one click spring type auxiliary for quick and easy installation, visible from the front face of the device. This MN auxiliary has a 24 VAC 50/60 Hz or 24VDC rated voltage. It trips the circuit breaker when the control voltage drops below 35% of its rated value. It complies with IEC 60947-2 standard. Compact NSXm and PowerPact B embed either 1 MN or 1 MX coil.
Technical specifications
| Product type | undervoltage release | |
| Version | 24 V AC/DC | |
| Suitable for | circuit breaker |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85363010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | 1, 2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) |
| SVHC free | No |
| RoHS conform | Yes |
| Sustainable | Yes |
