GS2TU3 | Schneider Electric

Fuse, fuse size J, (L x W x H) 250 x 364 x 300 mm, for load-break switch, GS2TU3

Order No.: 02P6611
EAN: 4099889305043
MPN:
GS2TU3
Series: TeSys GS
GS2TU3 Schneider Electric Switches Accessories
Image may differ
Unit Price (€ / pc.)
3,680.9199 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
3,680.92 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3,680.9199 €

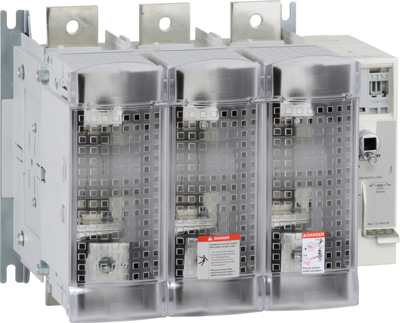

Switch-disconnector-fuse, GS2TU3, Schneider Electric

TeSys GS fuse switch-disconnector, 3 poles (3P), 800A/1000V, to be used with class J fuse links up to 800A, for motor applications up to 450kW@400V AC-23. To be equipped with an external front side mounting operating handle GS2AH (several models available). Screw terminals to be equipped with upstream and downstream 3P terminal shrouds GS1AP73 (to be ordered separately), it provides high short circuit current rating 200kA@600V. Add-on auxiliary contact modules, front mounting GS1AM (early-break and position signaling), side mounting GS1AN (position signaling) can complete the assembly (to be ordered separately). UL/CSA certified.

Technical specifications
Width 364 mm
Height 300 mm
Length 250 mm
Product type fuse
Version fuse size J
Suitable for load-break switch
Logistics
Country of origin FR
Customs tariff number 85365080
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
Sustainable Yes
