GS2JU3N | Schneider Electric
Fuse, fuse size J, (L x W x H) 122.2 x 149.3 x 186 mm, for load-break switch, GS2JU3N
Unit Price (€ / pc.)
526.5036 € *
Standard delivery time from the manufacturer is: 1 Week

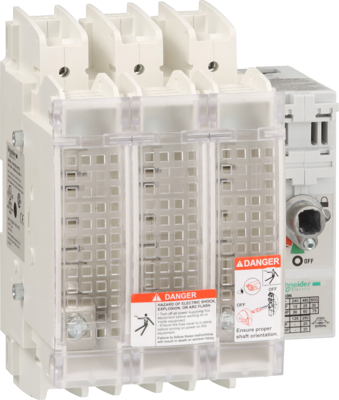

Switch-disconnector-fuse, GS2JU3N, Schneider Electric
TeSys GS fuse switch-disconnector, 3 poles (3P), 100A/750V, to be used with class J fuse links up to 100A, for motor applications up to 51kW@400V AC-23. To be equipped with an external front side mounting operating handle GS2AH (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 200kA@600V. Add-on auxiliary contact modules, front mounting GS1AM (early-break and position signaling), side mounting GS1AN (position signaling) can complete the assembly (to be ordered separately). UL/CSA certified.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 186 mm | |
| Version | fuse size J | |
| Width | 149.3 mm | |
| Suitable for | load-break switch | |
| Length | 122.2 mm | |
| Product type | fuse |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
